Finisare

Finishing services

B1 KOMFI format laminating machine model SAGITTA 76

Maximum speed 35 m / min, sheet size between 76 x 102 cm and 30 x 22 cm, Paper weight 115-500 g / m2, Deposited film thickness 0.24 - 0.5 mm, Feed stack height 70 cm

Constructive novelties: the new feeder with a row of suction cups for collection / lifting and a row of suction cups for the transport of sheets at the matching signs.
In practice this is an improvement, the feeder works much better, with fewer problems (especially on difficult cartons and high speeds).
Antistatic bar - takes over the electrostatic loading of the sheets and ensures the lamination of the products on both sides. Helps to roll thin papers correctly. The sheets, being unelectrified, are taken correctly without sticking and without entering the device crookedly.

B1 KOMFI format automatic laminating machine model SAGITTA 76

Maximum speed 50 m / min, sheet size between 76 x 102 cm and 30 x 22 cm, Paper weight 115-600 g / m2, Deposited film thickness 0.24 - 0.5 mm, Feed stack height 70 cm, Automatic removal

Constructive novelties: the new feeder with a row of suction cups for collection / lifting and a row of suction cups for the transport of sheets at the matching signs
In practice this is an improvement, the feeder works much better, with fewer problems (especially on difficult cartons and high speeds).
Antistatic bar - takes over the electrostatic loading of the sheets and ensures the lamination of the products on both sides. Helps to roll thin papers correctly. The sheets, being unelectrified, are taken correctly without sticking and without entering the device crookedly.
Disposal stacker - ensures a high stack of laminated products. No need to slow down the machine to pick up laminated sheets.
Kit for applying windows to packaging.

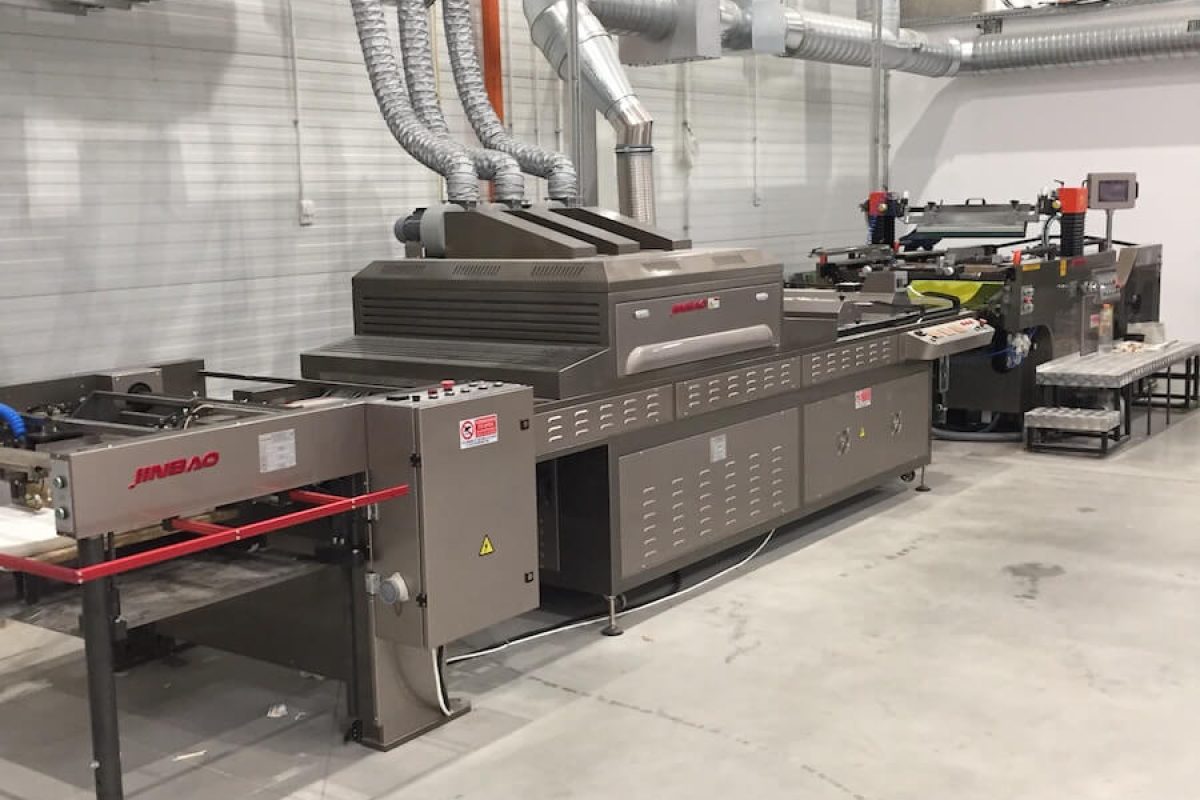

Automatic line for selective UV varnish composed of Jinbao Machinery JB-720 A, Jinbao Machinery UV varnish drying oven model JB-800UVJ and Stacker machine Jinbao Machinery JB-800S selective UV varnish

Varnishing material dimensions between 72 x 52 cm and 35 x27 cm / Print material thickness between 90 - 450 g / m2 / Speed between 1000-3600 sheets / hour

JB-720A - Fully Automated Screen Printing Machine with JB Screen Stop Cylinder Screen Press screen printing
The fully automated JB-A Stop Cylinder Screen Press series adopts the classic sheet-shutter cylinder technology with known advantages such as: sheet positioning with precision and stability, high accuracy, high speed, low noise, high-grade automation, which is the newest product in the range of printing machines with screen printing and flat feed per cylinder.

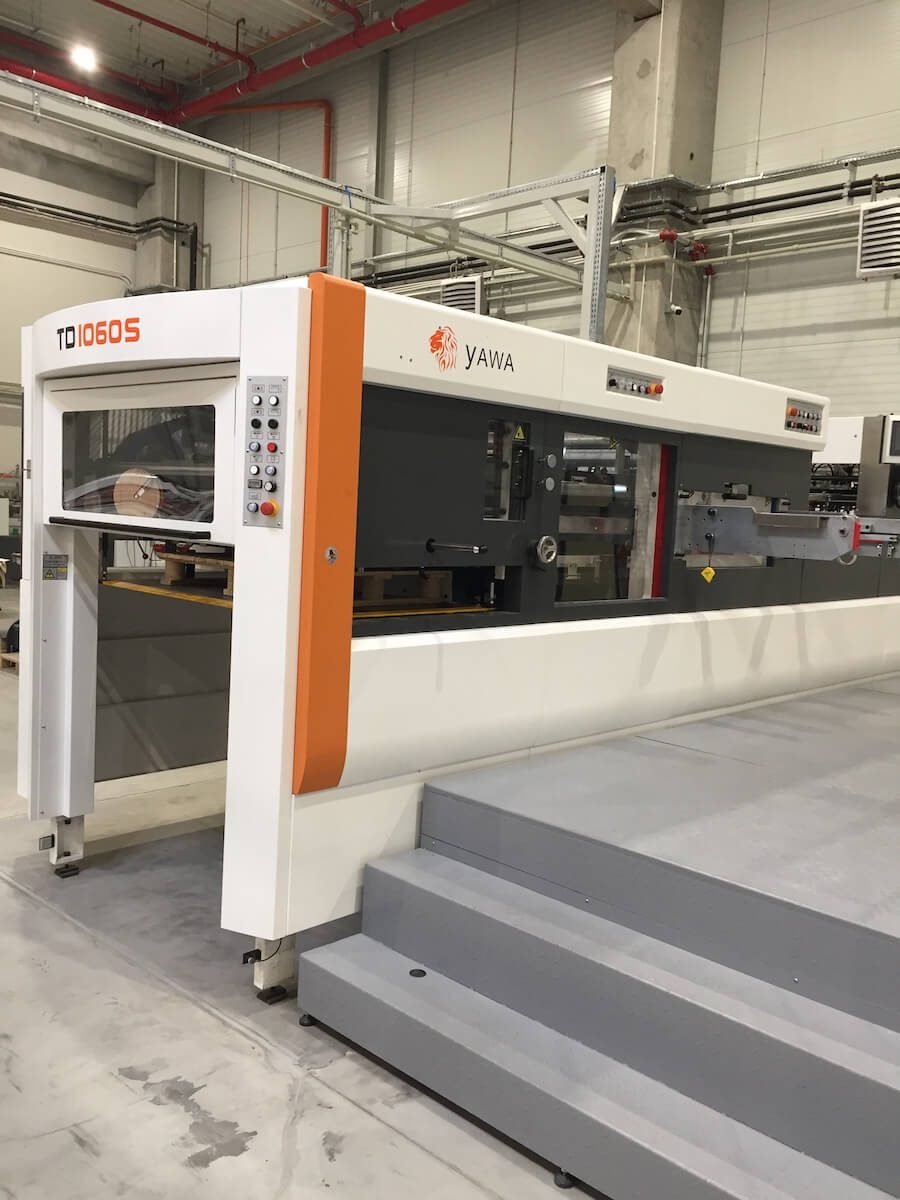

Vertical punch YAWA TD 1060S

Sheet dimensions: between 74 x 106 cm and 36 x 40 cm / Sheet thickness between 115-2000 g / m2 including for corrugated cardboard / Pressing force 300 t / Maximum speed 7500 sheets / hour / Non-stop feeding and inserter for paper signs

Flexibility: The machine can work with a wide range of materials, from ordinary paper and cardboard from 90 gr / m2 to 2000 gr / sqm, to corrugated cardboard up to 4mm. The machine can work with or without the deburring unit.
Automation: Power and disposal "Non-stop"; automatic insertion of signs at the counter signal.
Easy operation: Concise visual interface of the screen and the possibility of providing commands by touching the screen, provides easy and convenient operation. The complex alarm system provides a lot of visual information about malfunction, incorrect adjustment or malfunctions.
Cutting unit: Smart clamping technology leads to both increased productivity and excellent cutting precision even for complex machining. You can work either with pins and the deburring plate or with up / down deburring plates.

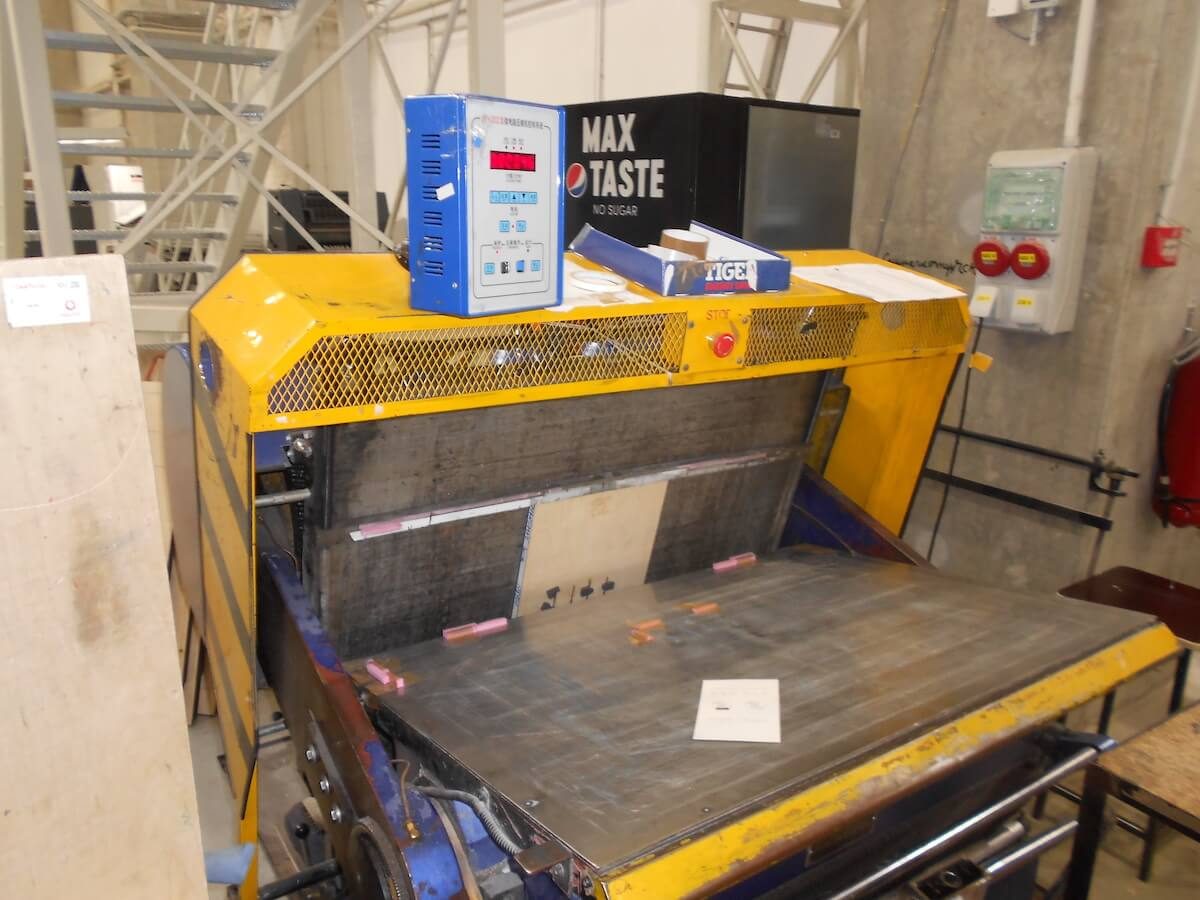

Wallet stamp 70x100

Working surface 104 x 74 cm / maximum length of the knives: 30 m / working speed 22 cycles per minute

Destined for works made of rigid materials, the wallet type stamp is an indispensable piece of any printing house. Generally designed for small runs because the insertion and removal of sheets is done manually, it is a reliable machine and adaptable to a wide range of sizes, thicknesses and materials. Automatic or semi-automatic work cycles are set from an electronic panel.

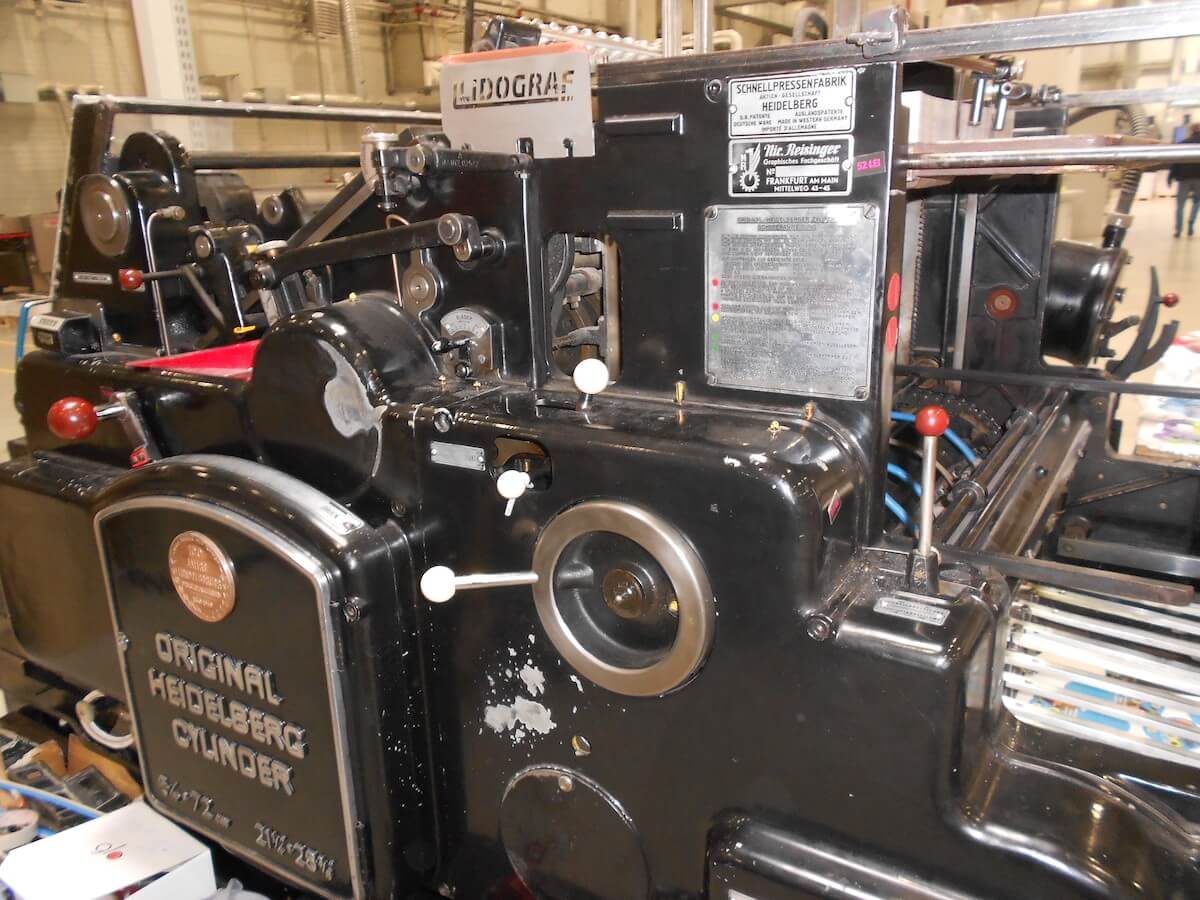

Original Heidelberg Cylinder 54 x 72

Size 21 x 30, maximum mechanical speed 4600 sheets per hour, weights: between 60 and 400 g / m2

Originally intended as high-printing machines, this equipment (entirely mechanical) is still resistant after many years of their production, being recognized worldwide as mechanical jewelry. Specialized printing companies look for them all over the world and recondition them, transforming them into some of the best types of stamps. Extremely robust, they allow high stamping speeds and due to the fact that the feeding and removal of sheets is automatic.

Box gluing machine - automatic Hoson ZH-1400BFST

Working speed between 0 and 400 m / min with continuous adjustment / Weights between 200 and 800 g / m2 accepts corrugated cardboard / Automatic feeding and disposal / Maximum sheet size: 100 cm / Can glue boxes in 4, 6 points tia tray, tray with lid, box with 3-point soldering and automatic forming, boxes with soldering on one side, boxes like a tray with double walls.

Automatic machine for forming and gluing boxes in 4/6 corners with the possibility of hot gluing (4 HHS ends) or cold gluing and plasma preparation of the gluing surface for glossy materials.
It has a pre-fold unit, intelligent auto adjustment with memory function and Schneider control system with touchscreen operation.
The system allows setting the speed / draft / counter / etc. The car is equipped with the possibility of remote diagnosis, which facilitates maintenance, as well as with remote control system. When disposed of, it is equipped with an automatic forklift which is an independent piece of equipment placed behind the pressing unit and conveyors to stack the finished boxes vertically for packaging. Through this system, the folded boxes are rotated 90 degrees and their speed is reduced, so that operators can easily remove and pack them.

Plastic windows gluing machine for XLTC-1020 packaging

Packaging dimensions between 108 x 73 cm and 14 x 14 cm / Packaging material thickness between 200 and 500 g / m2 and corrugated cardboard up to 7 mm / Speed up to 8000 sheets / hour / Film dimensions applied between 30 x 41 cm and 8 x 6 cm with a thickness between 0.05 and 0.2 mm

XLTC-1020 is widely used in gluing plastic windows to various types of packaging, especially cosmetic boxes, beverages, napkins, toys, etc. It includes the function of cutting the foil, notching and gluing, all operations being performed by servomotors and related software that make the machine easy to use.

Box Plus boxes and folders gluing machine

Maximum size 72 x 102, minimum size 12 x 12 cm, Sheet thickness: between 150 and 350 g, Speed 120 m / min

Versatile equipment for gluing various types of boxes and folders, including CD covers. It can make various inserts in the respective boxes. The equipment can be equipped with automatic sda application heads.

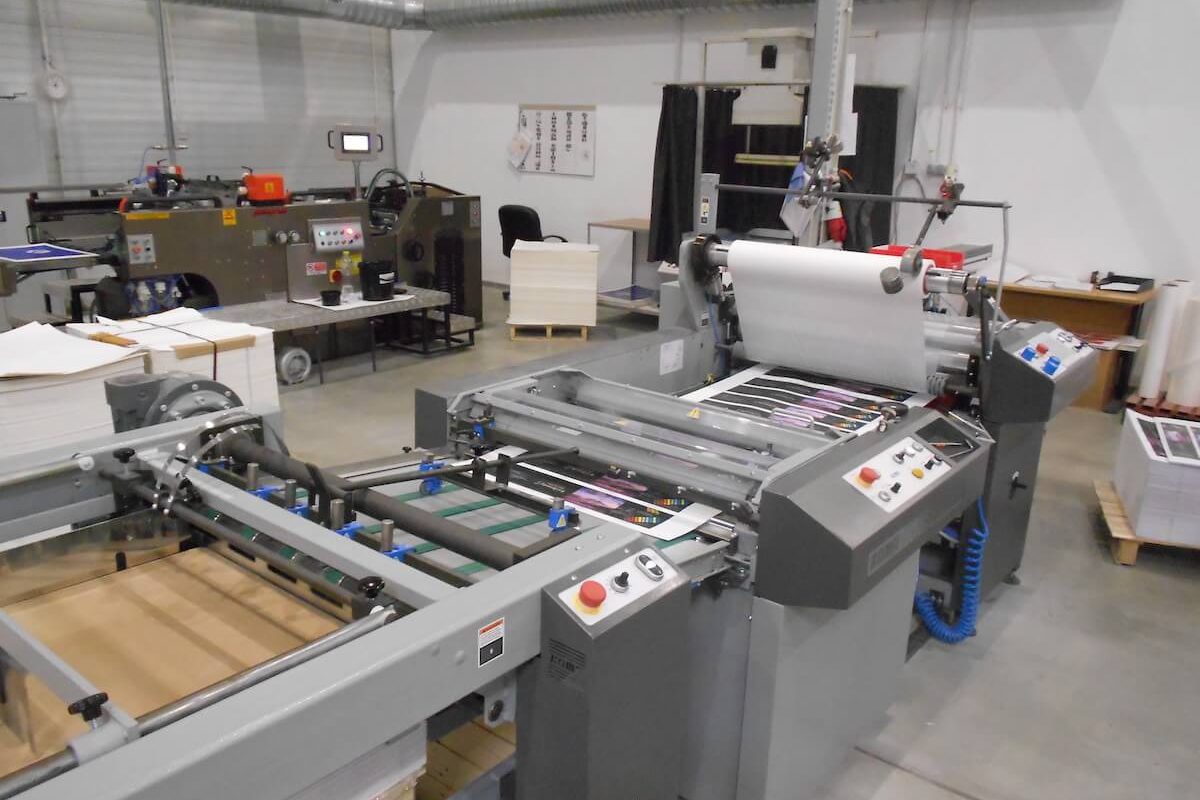

Lamina 1110 semi-automatic laminating machine

Sheet dimensions: 110 x 110 cm up to 20 x 35 cm, Accuracy + - 0.2 mm, Lamination sheet thickness 130-450g / m2. Material thickness on which is disposed of from 250 g / m2 (0.6-1 cm). Speed: up to 1500 sheets / hour Material used: cold adhesive

Precision equipment for double-sided lamination of various substrates. It is equipped with automatic feeder for the material to be scrapped, adhesive pumps, counter, disposal table all controlled by actuators via a touch screen display.

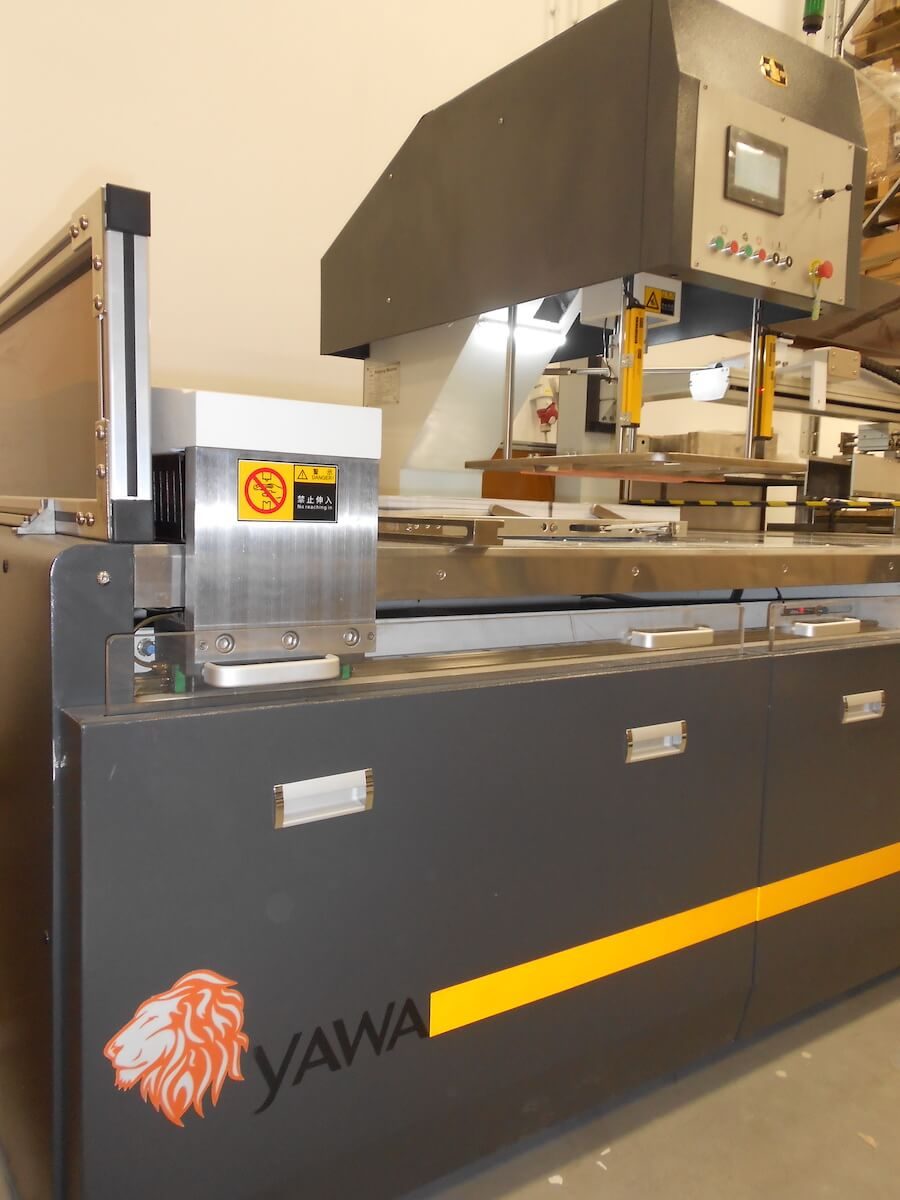

Deburring machine: Yawa HTQF-1080TR

Sheet dimensions: between 78 x 108 cm and 45 x 65 cm / Stack thickness between 4 and 10 cm / Speed 15 - 22 cycles / hour. Discarded products between 3 × 3 cm and 45 x 64 cm / Robotic elimination arm for products between 3 and 30 cm

This machine can perform automatic deburring of small and medium-sized stamped products such as cardboard boxes, labels as well as others made of cardboard and paper.
The structural and mechanical design ensures easy operation and high accuracy. The digital interface and the PLC control help the operator to complete the job preparation and to switch from one job to another. Includes the "Robot Grip" arm option that automatically lifts the products and places them on a conveyor belt for the next operation.

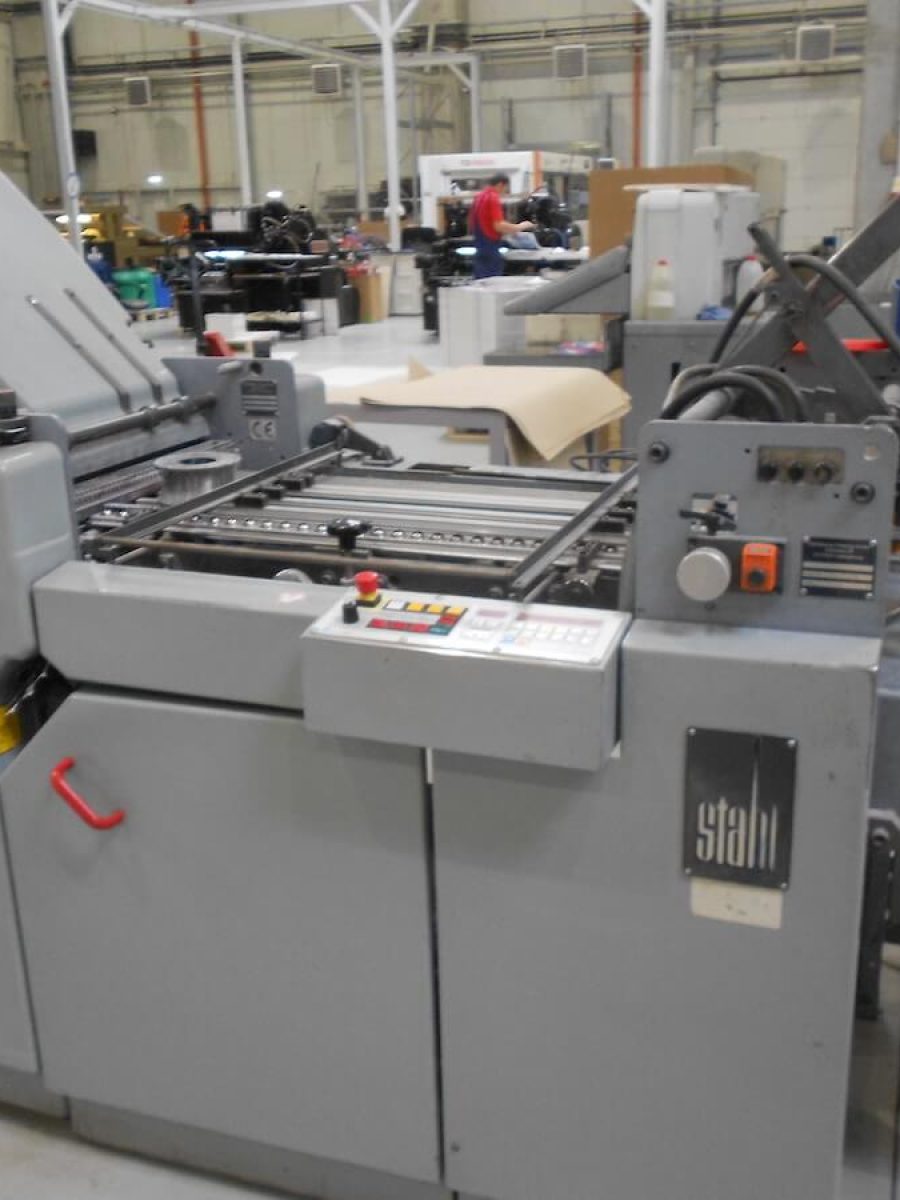

Stahl FI52-4 KB Folding Machine

Paper dimensions: between 52 x 84 cm and 10 x 15 cm, speed 30000 sheets per hour, paper weight between 40 and 200 g / m2

High speed folding machine for small formats. Extremely versatile and fast thanks to the Sthal feeding and disposal system.

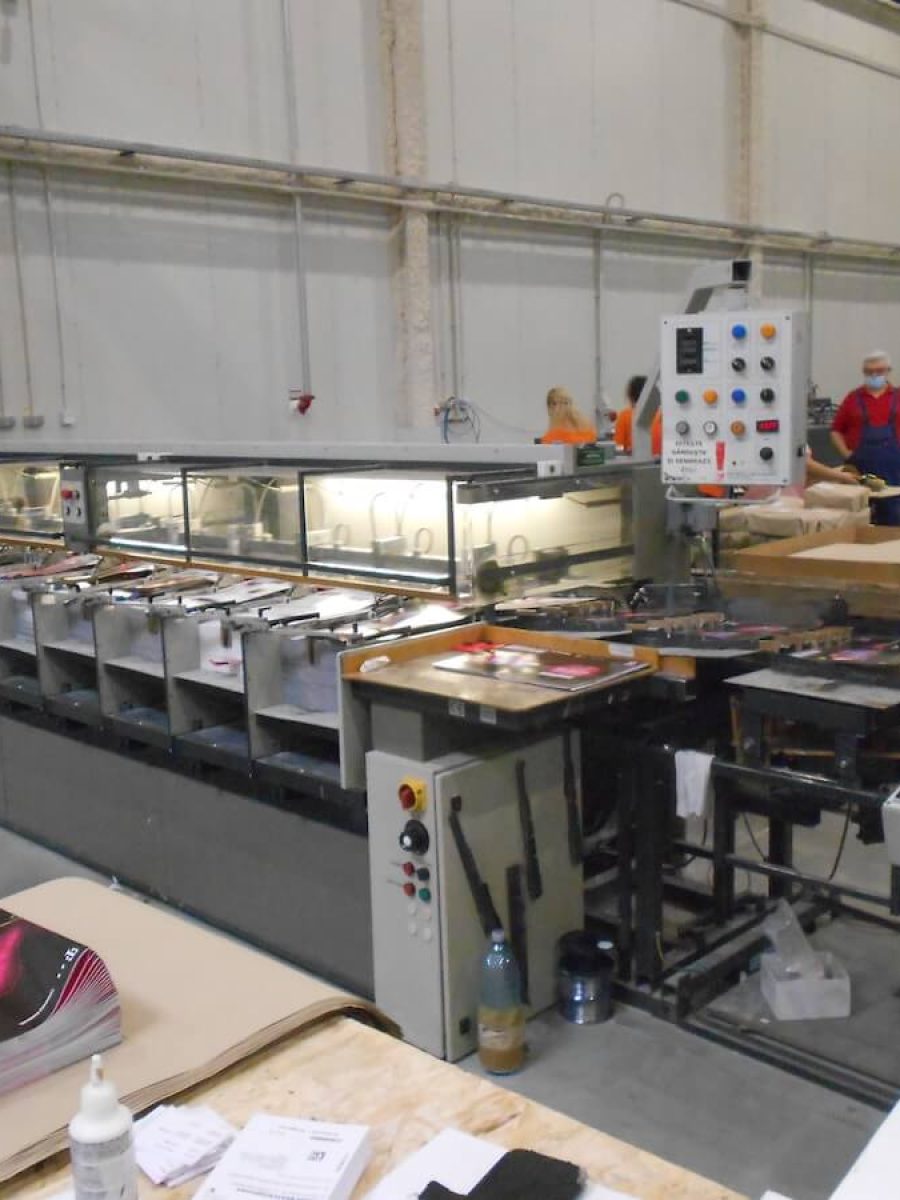

Colander Thiesen & Bonitz booklet maker, cutting, stapling and folding system model TB sprint B 310 VP with 10 cassettes

10 assembly stations, variable stacks up to 30 cm, max. 35 x 50 cm, min. 6.5 x 10 cm. Paper weight from 18 to 1000 g / m², speed: up to 3300 work cycles / h. Equipped with stapling-folding-cutting machine tb sprint 303 QSM. Open formats: maximum 35 x 50 cm, min. 6.5 x 15.5 cm, smallest booklet: 6.5 cm column length x 6.5 cm

Industrial system for making brochures by assembling, stapling, folding and cutting.

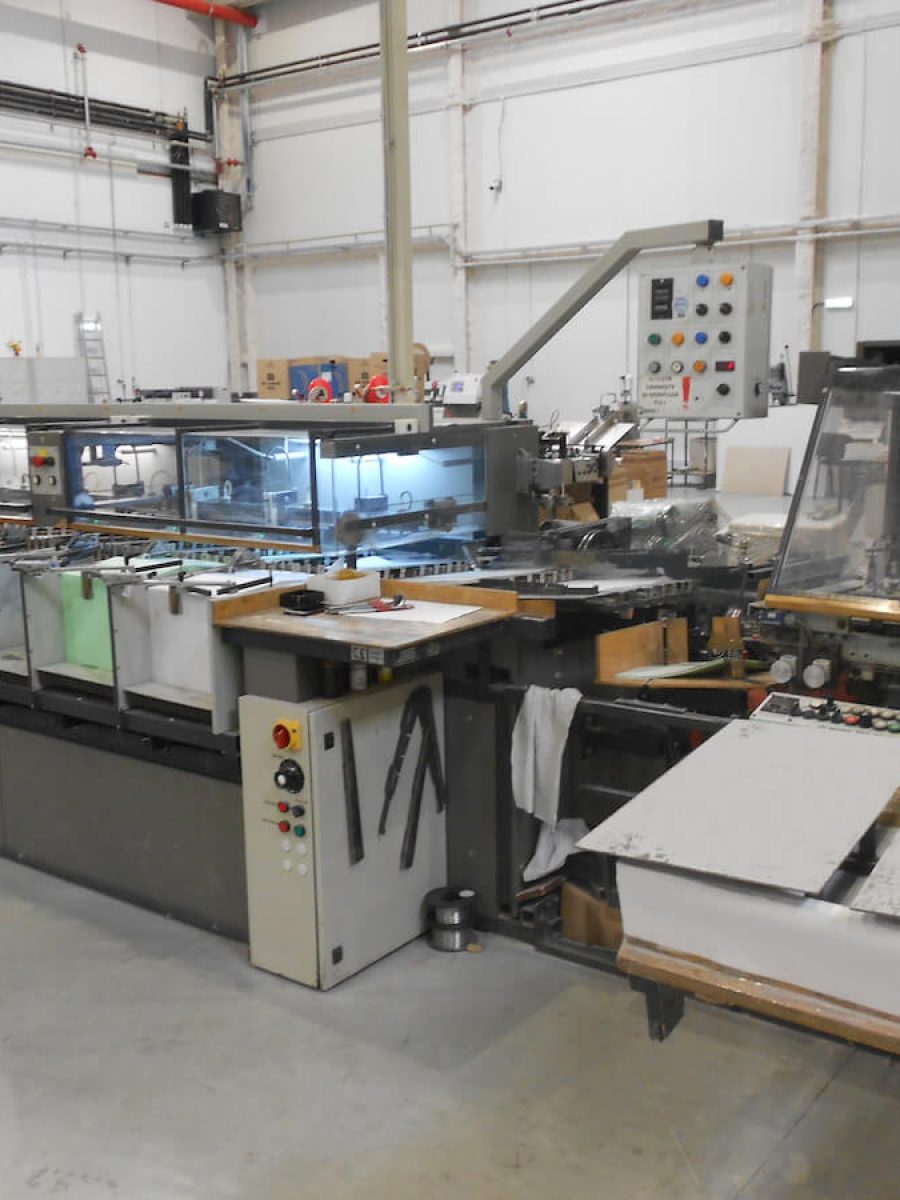

Colander Thiesen & Bonitz booklet maker, cutting, stapling and folding system model TB sprint B 310 VP with 8 cassettes

8 assembly stations, variable stacks up to 30 cm, max. 35 x 50 cm, min. 6.5 x 10 cm. Paper weight from 18 to 1000 g / m², speed: up to 3300 work cycles / h. Equipped with stapling-folding-cutting machine tb sprint 303 QSM. Open formats: maximum 35 x 50 cm, min. 6.5 x 15.5 cm, smallest booklet: 6.5 cm column length x 6.5 cm

Industrial system for making brochures by assembling, stapling, folding and cutting.

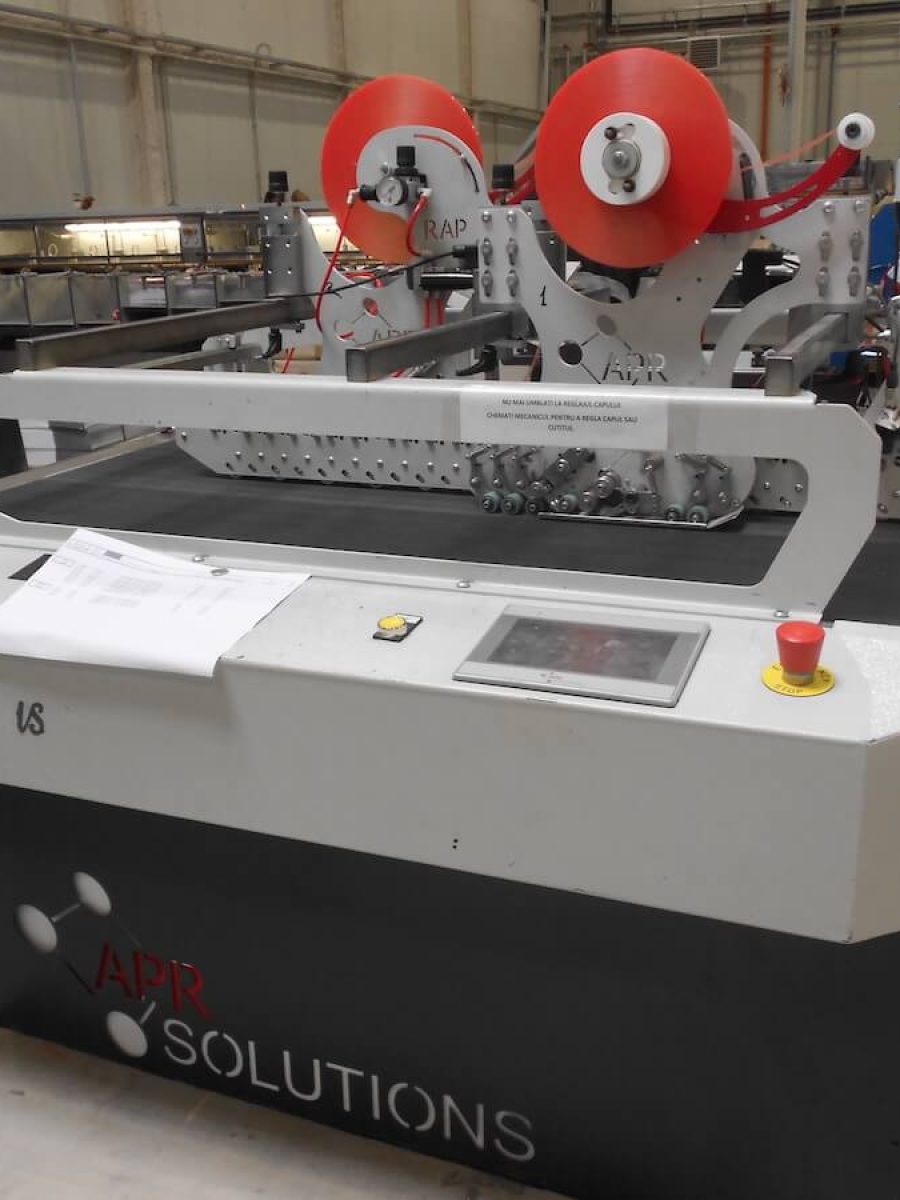

Athos Plus double-sided tape applicator

Format between: 70 x 100 and 15 x 15 cm, number of applications from 1 to 10. 2 Application heads. Weights between 150 and 800 g. Speed 120 pcs per minute. The length of the applied strip is between 3.5 and 100 cm. Band width between 4 and 25 mm

ATHOS PLUS machine designed and manufactured to apply double-sided adhesive tape completely automatically, using the special FEEDER PLUS feeder, with a format of 700 x 1000 mm. FEEDER PLUS is a fully automatic feeder, which works like any continuous friction feeder combined with the function of a suction feeder but eliminates all the limitations of traditional feeders, allowing work with very small sizes or complex cut shapes. It also allows working with small sizes or complex cut shapes, as well as with paper weights of 150 gr / m2, also eliminating signs of scratching delicate materials, such as matte laminate.

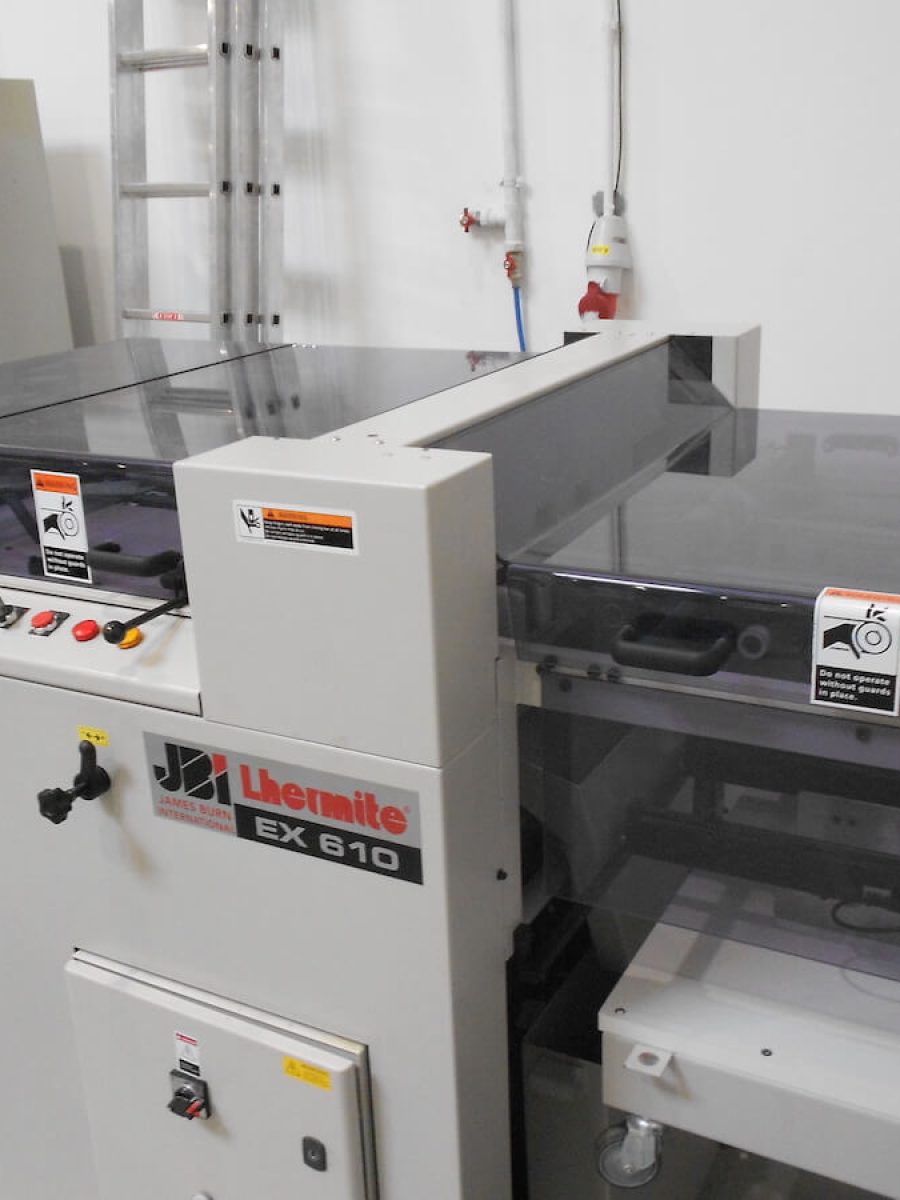

JBI 610 automatic punching machine

Sheet size: between 61 x 53 cm and 11 x 9.5 cm, Sheet thickness between 90 and 500 g / m2 (ie maximum opening 2.5 mm). Speed 120 cycles / minute

Industrial calendar punching machine, high productivity diaries. Provides 3: 1 or 2: 1 step tab punching, with and without calendar hook insert. Allows quick and accurate setting.

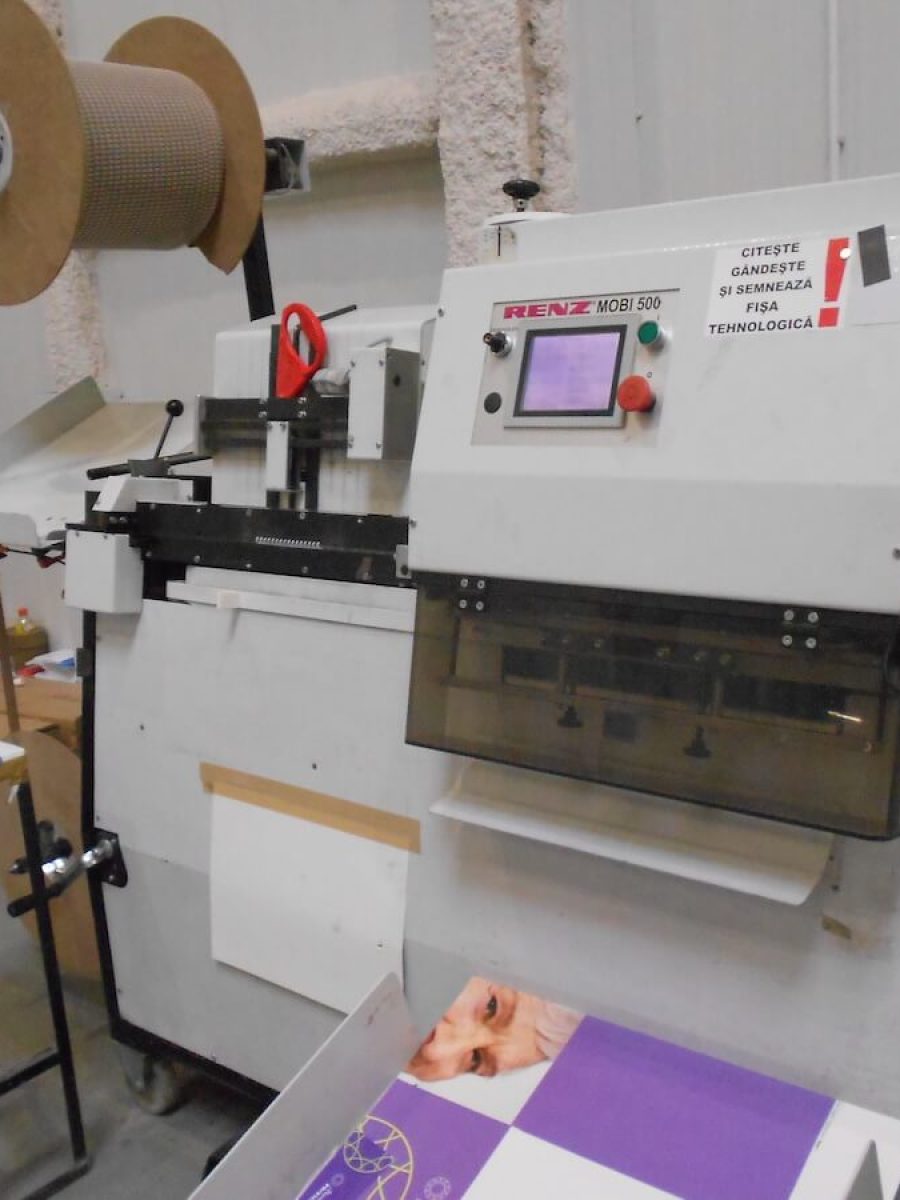

Renz Mobi 500 automatic winding machine

Maximum product size: 50 cm, Maximum thickness of tied product 26 mm, speed approx. 800 pcs per hour

Binding machine, easy to use, flexible, semi-automatic for books, calendars and any products that require spiral binding. High flexibility for different paper sizes. It has the possibility to bind the oversized products and insert the calendar-specific hook. Touch screen-assisted configuration process. Short setup times without additional tools and tools.

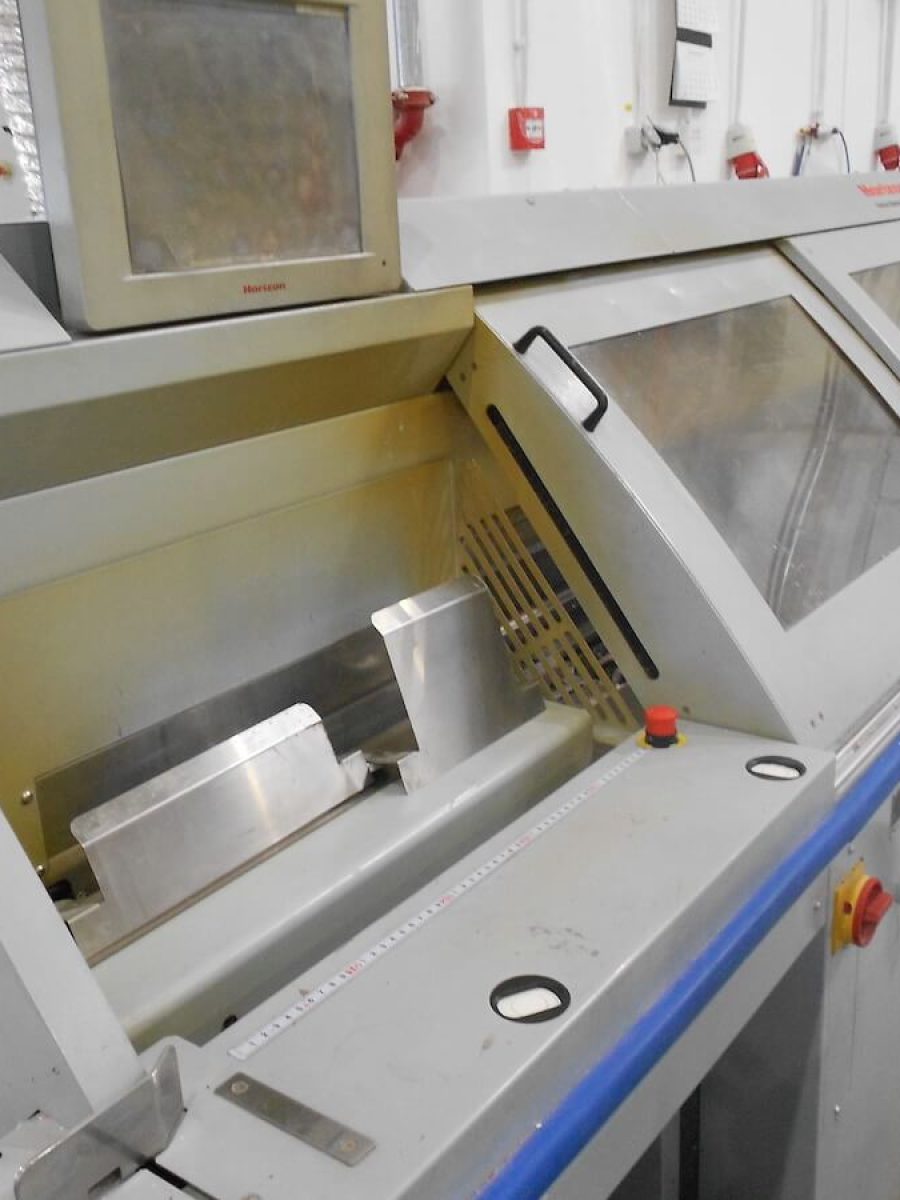

Horizon BQ-280PUR broaching machine

Book dimensions: Max. 385 x 320 mm. Min. 135 x 105 mm, A4 / A5 / A6 / B5 / B6.
- Brooch thickness: From 1 to 51 mm.
- Maximum production speed: Without milling 500 books / hour, With milling 500 books / hour
- Cover Dimensions: Max. 385 x 660 mm Min. 135 x 230 mm.

Horizon BQ-280PUR - is an automated broaching machine with PUR and / or EVA adhesive and variable working thickness. Advantages of the model: quick setting: all settings can be made instantly by simply entering the data about the sets and the cover in a color touch-panel. Changing settings from an A4 book to an A5 book can be done in 10 seconds, high working speed: books up to 50mm thick can be broached. at a maximum speed of 500 rpm. books with variable thicknesses can be broached one after the other by simply using a calibrator - included in the standard equipment (the set is inserted in the calibrator and the machine automatically makes the necessary settings for broaching to the read thickness).

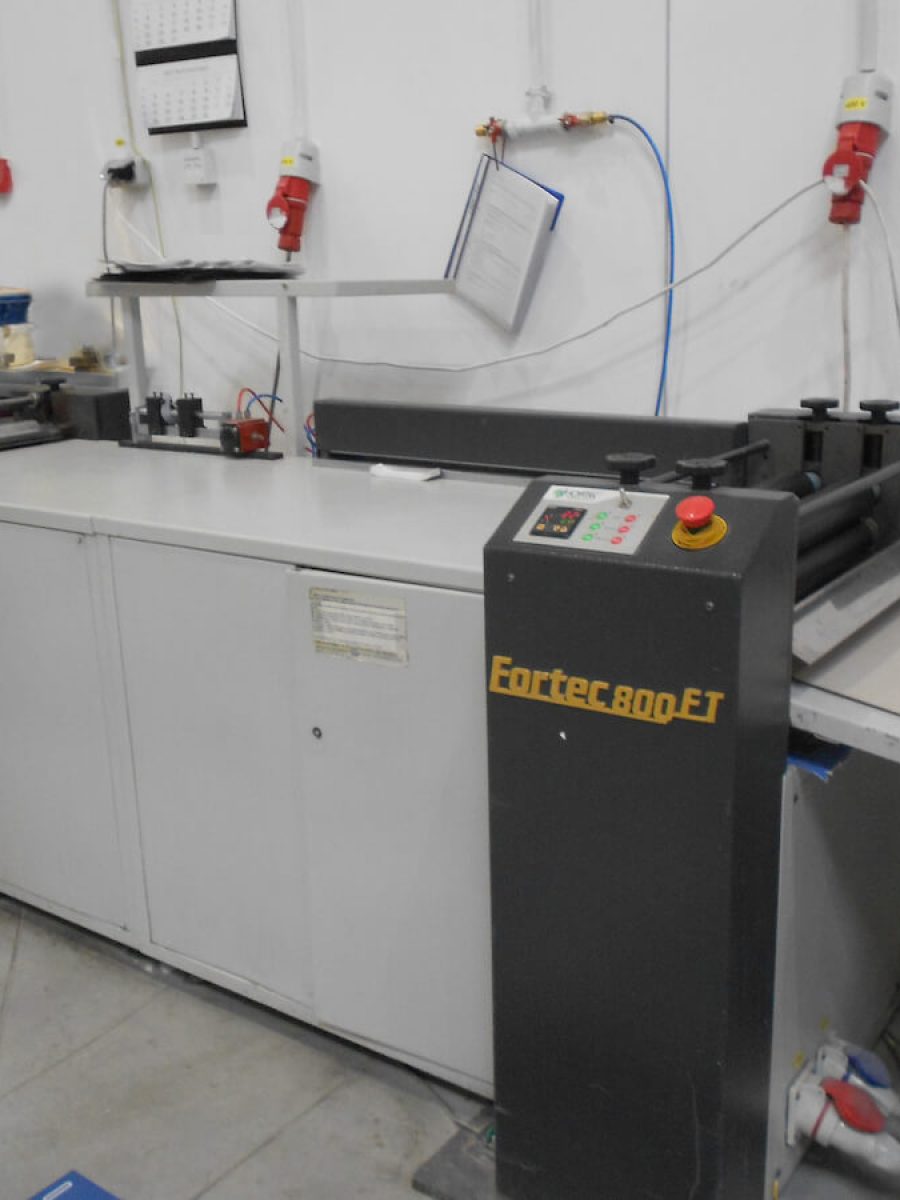

Foretc 800 case making machine

Maximum cover size: 450 mm x 750 mm
Minimum cover size: 100 mm x 100 mm
Paper thickness: 40 g / m2 - 90 g / m2
Cover thickness: 0.5 mm - 7 mm
Bending width at the edges: 15 mm - 50 mm
Productivity: 300 covers / hour
Adhesive: hot / cold

Semi-automatic equipment for making barks, covers and rigid boxes using hot or cold adhesive. A simple but very ingenious and reliable car for small runs.
